Dropping the lure test

Once the UAV was capable of stable flight, it was time to add the capability of dropping the lure. To facilitate the drop, a HK15138 Standard Analog Servo from HobbyKing was used. This plugged directly in to the Outputs rail on the ArduPilot, and could be used once wiring was added to power the outputs rail. This required a battery to be connected to the UAV, so I could not test the actuator while the ArduPilot was being powered via USB. This also avoided the risk of brownout that is associated with attempting to do so.

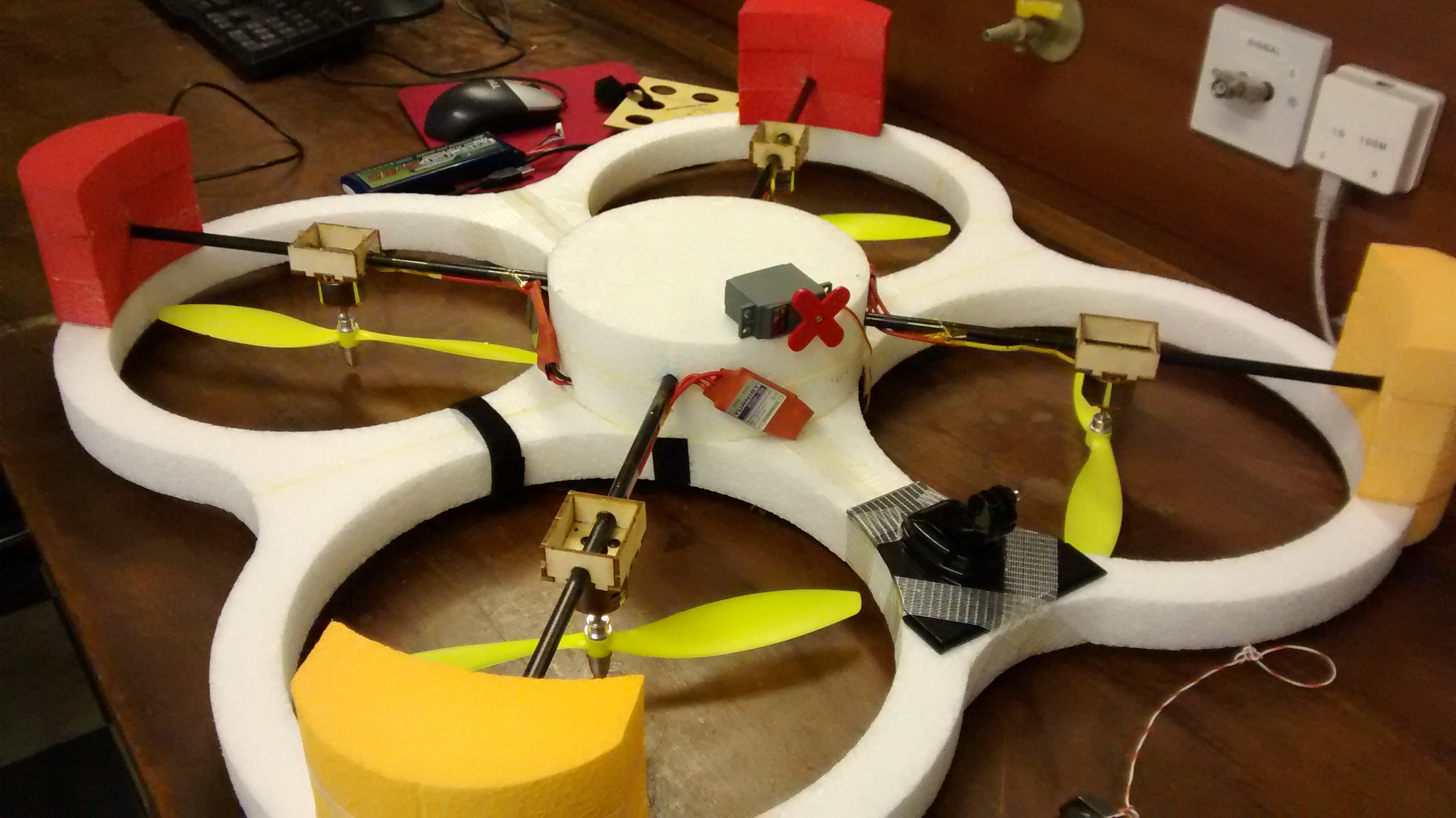

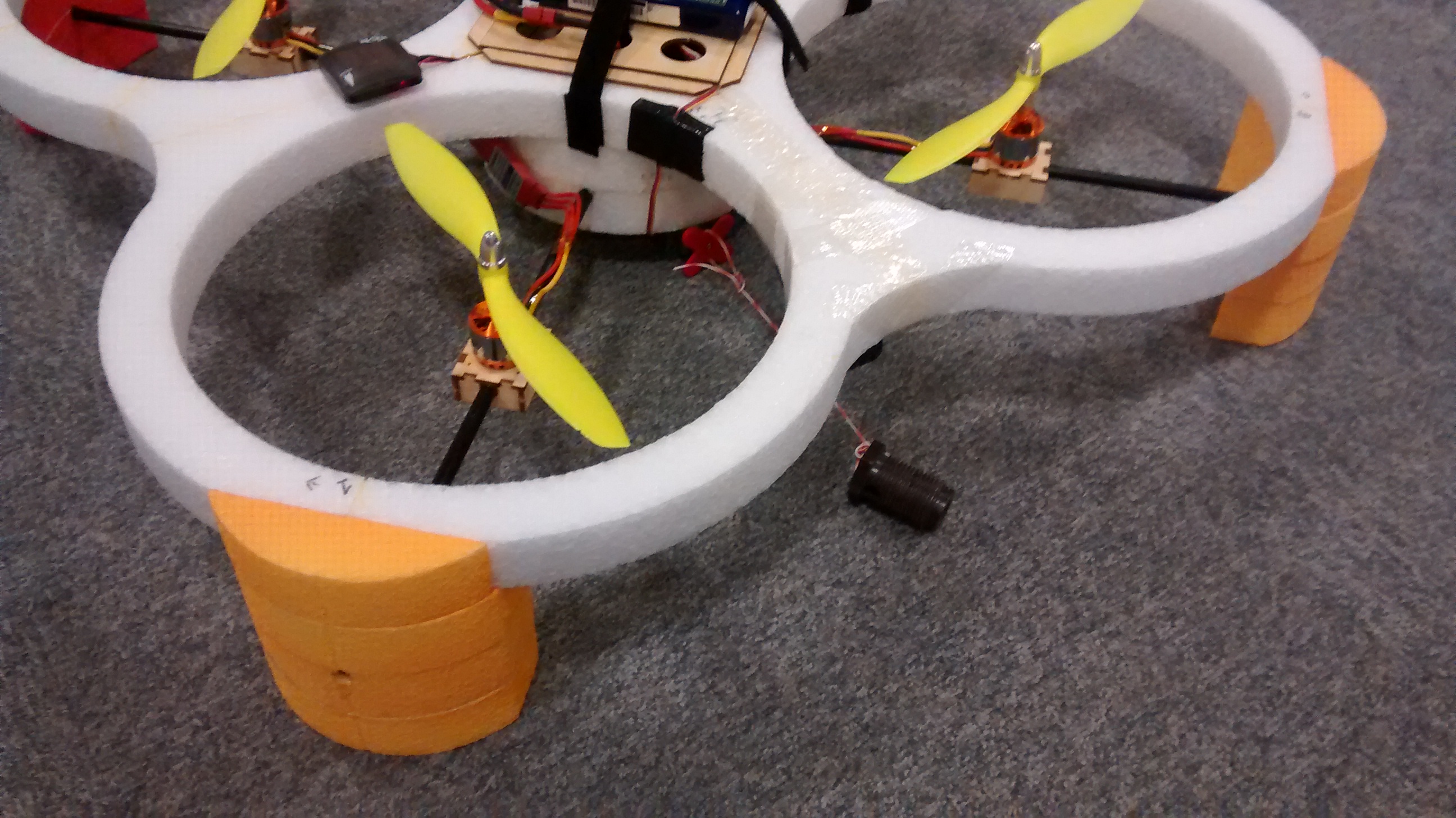

It was decided that the actuator should be attached to the bottom of the UAV’s center. It has been placed on the same side as the GoPro so that the battery can assist in countering the weight. Additional wedges of EPP were required to be added to the feet of the UAV so that the UAV did not rest on the actuator. The feet were attached using Epoxy resin, and the actuator was attached using Evo Stick.

IMG_20150506_151954018

To simulate the weight of a lure plus a chunk of meat, a piece of scrap metal was used as a test lure. This was hooked over the actuator. The lure was then dropped by the actuator rotating and the loop holding the lure slipping off of it.

IMG_20150506_170010352

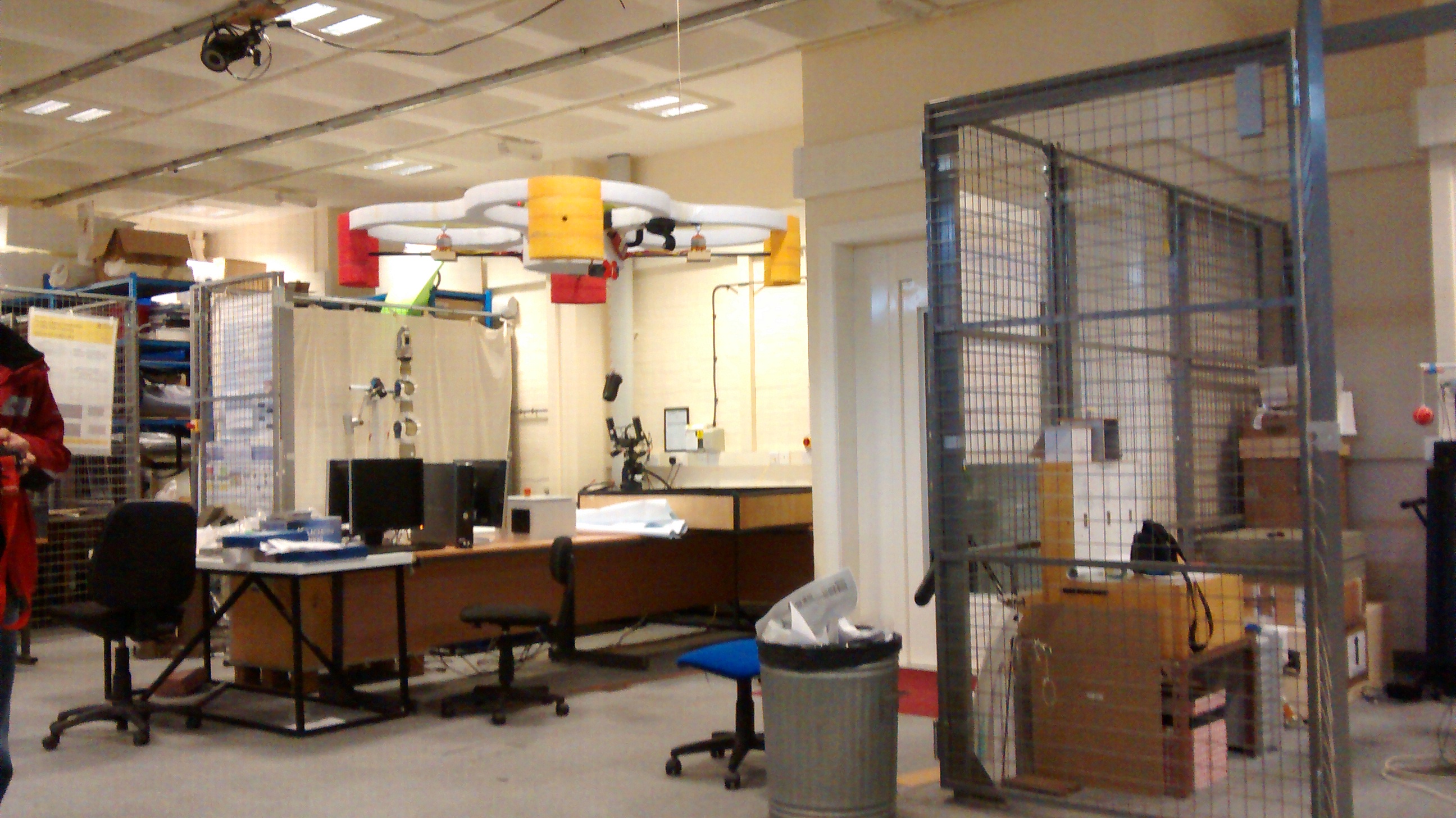

IMG_20150506_165907267The weight of the lure did not cause any issues in the flight capabilities of the UAV. As soon as the lure was dropped the UAV did rapidly rise due to the sudden lack of encumbrance, but it remained level throughout. It is not expected that dropping a lure will cause any major issues in the UAV’s ability to fly.
